Computational Geometry Primitives for Frontend Visualization

When building mapping tools, data visualizations, or interactive graphics, you often need to manipulate shapes, meshes, and labels. The packages clipper-lib, delaunator, earcut, and polylabel are industry-standard utilities for these specific geometric tasks. They are not general-purpose graphics libraries but rather focused engines that solve hard math problems so you don't have to.

Let's break down their specific roles, how they handle data, and where they fit in your architecture.

✂️ Polygon Boolean Operations: clipper-lib

clipper-lib is a JavaScript port of the famous Clipper library. It handles boolean operations on polygons. This means you can take two shapes and find their union, difference, intersection, or XOR.

This is essential for features like "brushing" on a map, combining geographic regions, or creating complex masks.

import ClipperLib from 'clipper-lib';

const subject = [{ X: 100, Y: 100 }, { X: 200, Y: 100 }, { X: 200, Y: 200 }, { X: 100, Y: 200 }];
const clip = [{ X: 150, Y: 150 }, { X: 250, Y: 150 }, { X: 250, Y: 250 }, { X: 150, Y: 250 }];

const clipper = new ClipperLib.Clipper();
clipper.AddPath(subject, ClipperLib.PolyType.ptSubject, true);
clipper.AddPath(clip, ClipperLib.PolyType.ptClip, true);

const solution = new ClipperLib.Paths();
clipper.Execute(ClipperLib.ClipType.ctIntersection, solution);
// solution contains the overlapping area

Key Constraint: clipper-lib works with integers, not floats. You must multiply your coordinates by a scaling factor (e.g., 1000) before passing them in, then divide the results by the same factor. This avoids floating-point errors during calculation.

🔺 Triangulation: earcut vs delaunator

Triangulation is the process of breaking shapes into triangles. Both earcut and delaunator do this, but they start from different inputs.

earcut: Polygons to Triangles

earcut takes a defined polygon (with optional holes) and breaks it into triangles. This is exactly what WebGL needs to render a shape. If you have a GeoJSON polygon and want to draw it on a canvas, this is your tool.

import earcut from 'earcut';

// Flat array of x,y coordinates
const vertices = [0, 0, 100, 0, 100, 100, 0, 100];
const holes = [];
const dimensions = 2;

const indices = earcut(vertices, holes, dimensions);
// indices: [0, 1, 2, 0, 2, 3] (ready for WebGL buffer)

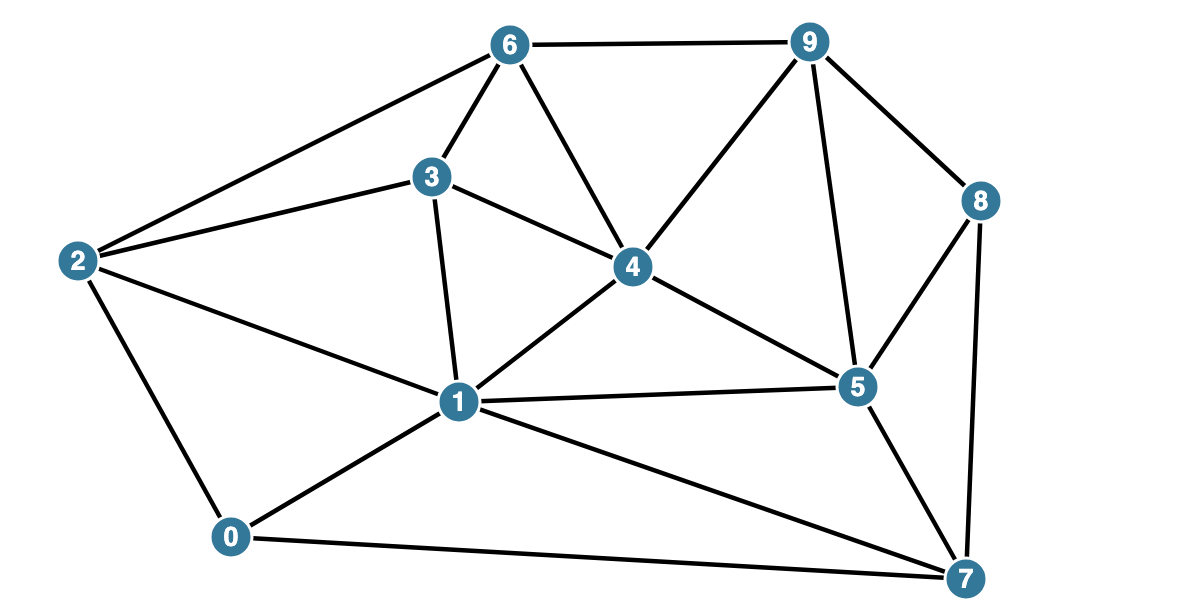

delaunator: Points to Mesh

delaunator takes a cloud of points and connects them into a mesh. It does not care about polygon boundaries initially. It creates a Delaunay triangulation, which maximizes the minimum angle of all triangles. This is great for terrain generation or connecting scatter plot points.

import Delaunator from 'delaunator';

// Array of [x, y] points
const points = [[0, 0], [100, 0], [50, 50], [0, 100]];

const delaunay = new Delaunator(points);
const triangles = delaunay.triangles;
// Uint32Array of indices connecting the points

Trade-off: Use earcut when you have a boundary (a shape). Use delaunator when you have a set of points and want to find the structure between them.

🏷️ Label Placement: polylabel

polylabel solves a specific visual problem: where do I put the text "California" inside the shape of California? The geometric centroid often falls outside the shape or in a narrow arm. polylabel finds the "pole of inaccessibility" — the point furthest from any edge.

import polylabel from 'polylabel';

// Polygon as array of rings (first is outer, rest are holes)
const polygon = [
  [[0, 0], [100, 0], [100, 100], [0, 100]] // Simple square
];

const [x, y] = polylabel(polygon, 1.0);
// Returns the best [x, y] for a label

It uses an iterative grid search to find the optimal spot. You can adjust the precision parameter to balance speed and accuracy.

⚡ Performance and Data Structures

These libraries are designed for speed, but they handle memory differently.

• earcut and delaunator return typed arrays (Uint32Array). This is crucial for WebGL. You can pass these directly to GPU buffers without copying data. This makes them extremely fast for rendering thousands of features.
• clipper-lib uses JavaScript objects for points ({ X: 1, Y: 1 }). This creates more garbage collection pressure. For heavy-duty clipping in a loop, you may need to manage object reuse or consider a WASM alternative if performance lags.
• polylabel returns a simple array [x, y]. It is computationally heavier than triangulation because it searches iteratively. Use it sparingly — ideally once per polygon during data preparation, not every frame.

🌐 Real-World Integration Patterns

Scenario 1: Interactive Map Drawing

You let users draw shapes that merge together.

• ✅ Best choice: clipper-lib
• Why? You need to calculate the union of the existing shape and the new brush stroke.

// Merge existing region with new stroke
const merged = performClip(existingPaths, newStrokePaths, 'union');

Scenario 2: Vector Tile Rendering

You are building a map renderer like Mapbox GL.

• ✅ Best choice: earcut
• Why? You receive polygon coordinates from the server and need to triangulate them for the GPU.

// Prepare geometry for WebGL
const vertices = flatten(polygonCoords);
const indices = earcut(vertices);
webglBuffer.setData(indices);

Scenario 3: Scatter Plot Visualization

You have 10,000 data points and want to show density regions.

• ✅ Best choice: delaunator
• Why? You can generate a mesh from the points and color triangles based on density.

// Create mesh from scattered data
const mesh = new Delaunator(dataPoints);
renderTriangles(mesh.triangles);

Scenario 4: Choropleth Map Labels

You have a map of states and need to place names inside each state.

• ✅ Best choice: polylabel
• Why? Centroids often land in water or outside borders for irregular states.

// Find safe label position
const labelPos = polylabel(statePolygon);
placeText(labelPos[0], labelPos[1], stateName);

📊 Summary Table

💡 Final Recommendation

These tools are complementary, not competitive. A complex visualization app might use all four.

1. Use clipper-lib to prepare and modify your geometry data (e.g., cutting a map view to a specific region).
2. Use earcut to convert that prepared geometry into triangles for the GPU.
3. Use delaunator if you are visualizing point data rather than predefined shapes.
4. Use polylabel during the data loading phase to calculate where labels should go before rendering starts.

Note on Maintenance: delaunator, earcut, and polylabel are maintained by Mapbox and are highly stable. clipper-lib is a community port of a C++ library. It is stable but receives fewer updates. For new projects requiring heavy clipping performance, evaluate if a WebAssembly port fits your needs better, but clipper-lib remains the standard for pure JavaScript environments.
